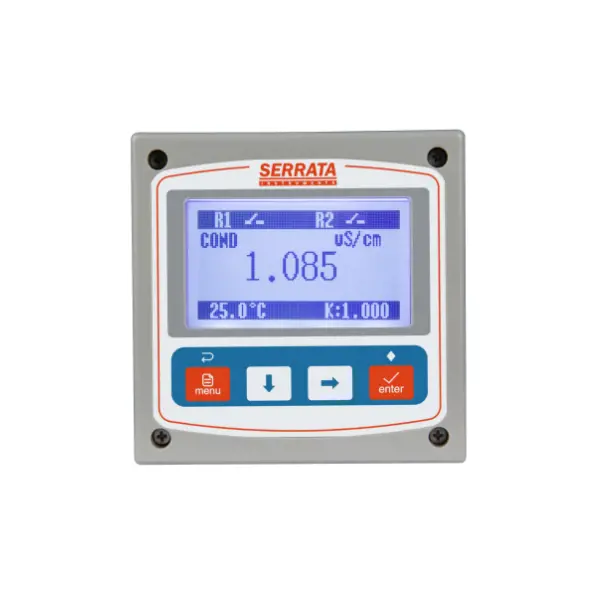

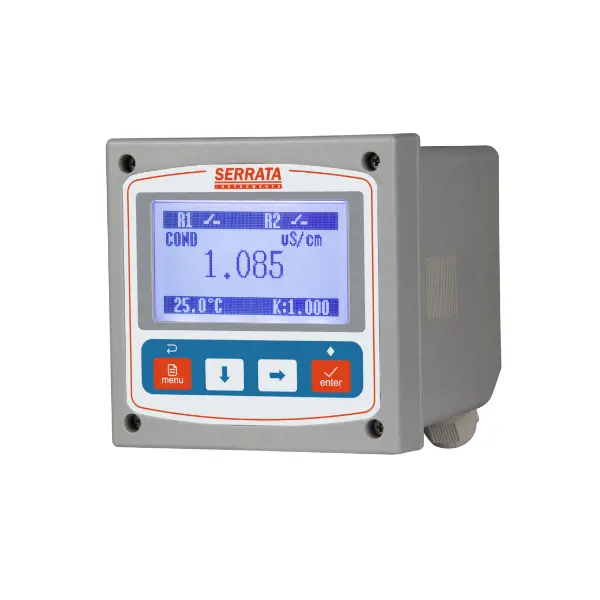

CONx250 Conductivity Transmitter

Main Features

  • IP66 Panel Mount Design
  • Wall Mount availability, by an accessory
  • for 2 poles conductivity electrodes
  • Pt1000 or NTC Temperature sensor entry
  • Automatic Temperature Compensation
  • 4-20 mA, Relays, Rs485 Modbus
  • Control function
  • Robust design
  pHx250-G2-A
Display Range

Conductivity
0-20 mS/cm  (min. resolution : 0,001 uS/cm)

Resistivity
0-18 Mohm * cm  (min. resolution : 0,001 Mohm*cm)

TDS
0-10000 ppm  (min. resolution : 0,001 ppm)

Salinity
0-15 ppt  (min. resolution : 0,001 ppt)

Temperature
-10....150 ºC  (min. resolution : 0,1 ºC)


* Ranges are depended selected conductivity electrode
Conductivity Probe 2 pole Conductivity probe
Temperature Probe

PT1000 or NTC 10K

(automatic or manual temperature compensation)
Analog Outputs

2 x 4-20 mA

(one is for Conductivity and other is for Temperature)
Relay Outputs 2 x Relays (NO)
Communication Rs485 Modbus
Mounting Options

Standard is Panel

for Wall mount, additional part, it is optional
IP Class IP66
Dimension

Front panel 100x100 mm, H: 120 mm

for panel cut details, check User Manual
Display 3,2" LCD Screen, Monocolor, with backlit
Power Supply 100-240 Vac
Functions Automatic Temperature Compensation





Content is preparing



Transmitter Order Codes Details
CONx250-T2-A Online Conductivity Transmitter
2 x 4-20 mA analog outputs
2 x Relays
Rs485 Modbus
100-240Vac
* only for two poles conductivity electrode
WMPx250 Wall Mount Accessory



Probe Order Codes Details

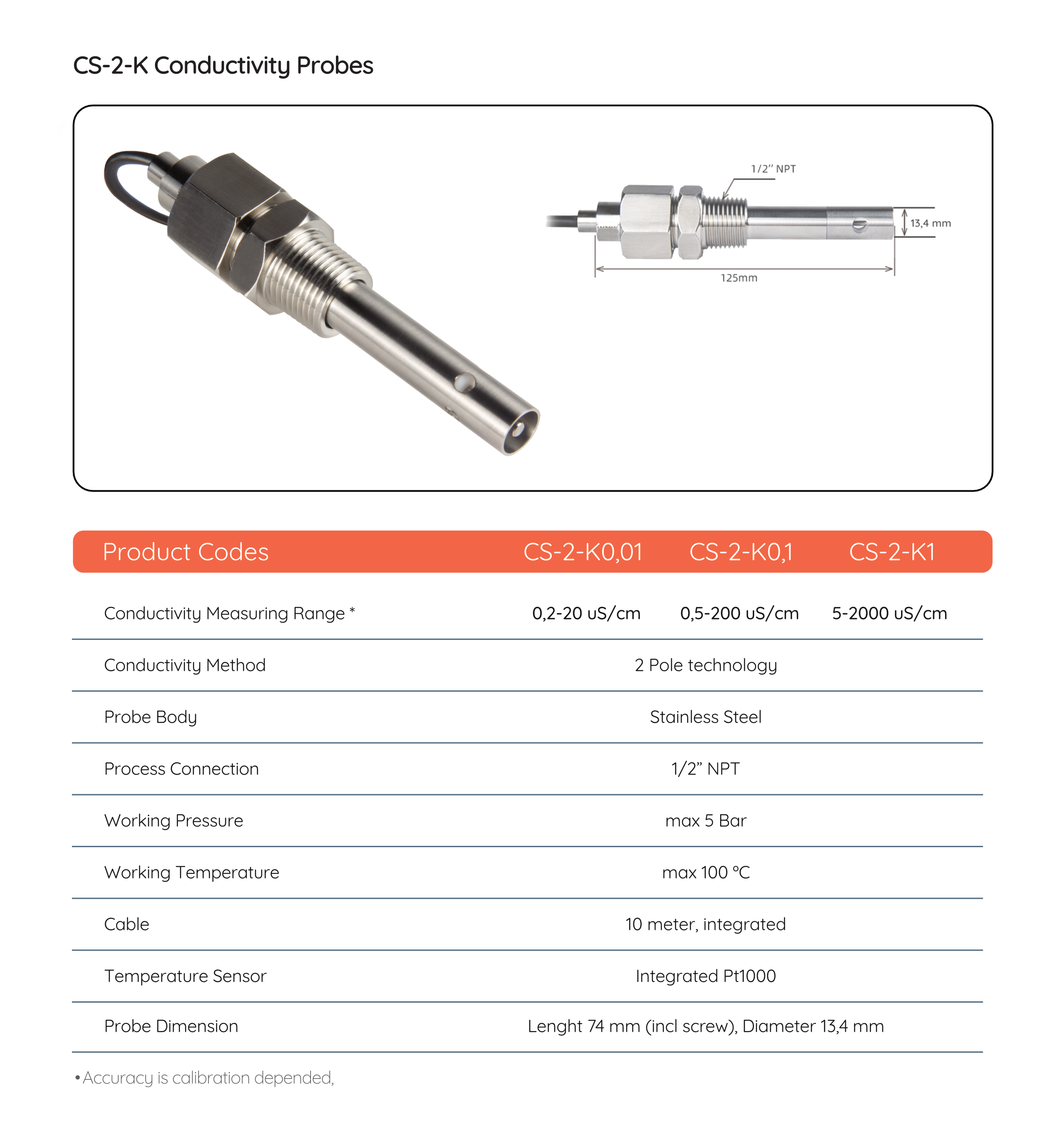

CS-2-K0,01 0,2...20 uS/cm
CS-2-K0,1 0,5...200 uS/cm
CS-2-K01 5...2000 uS/cm

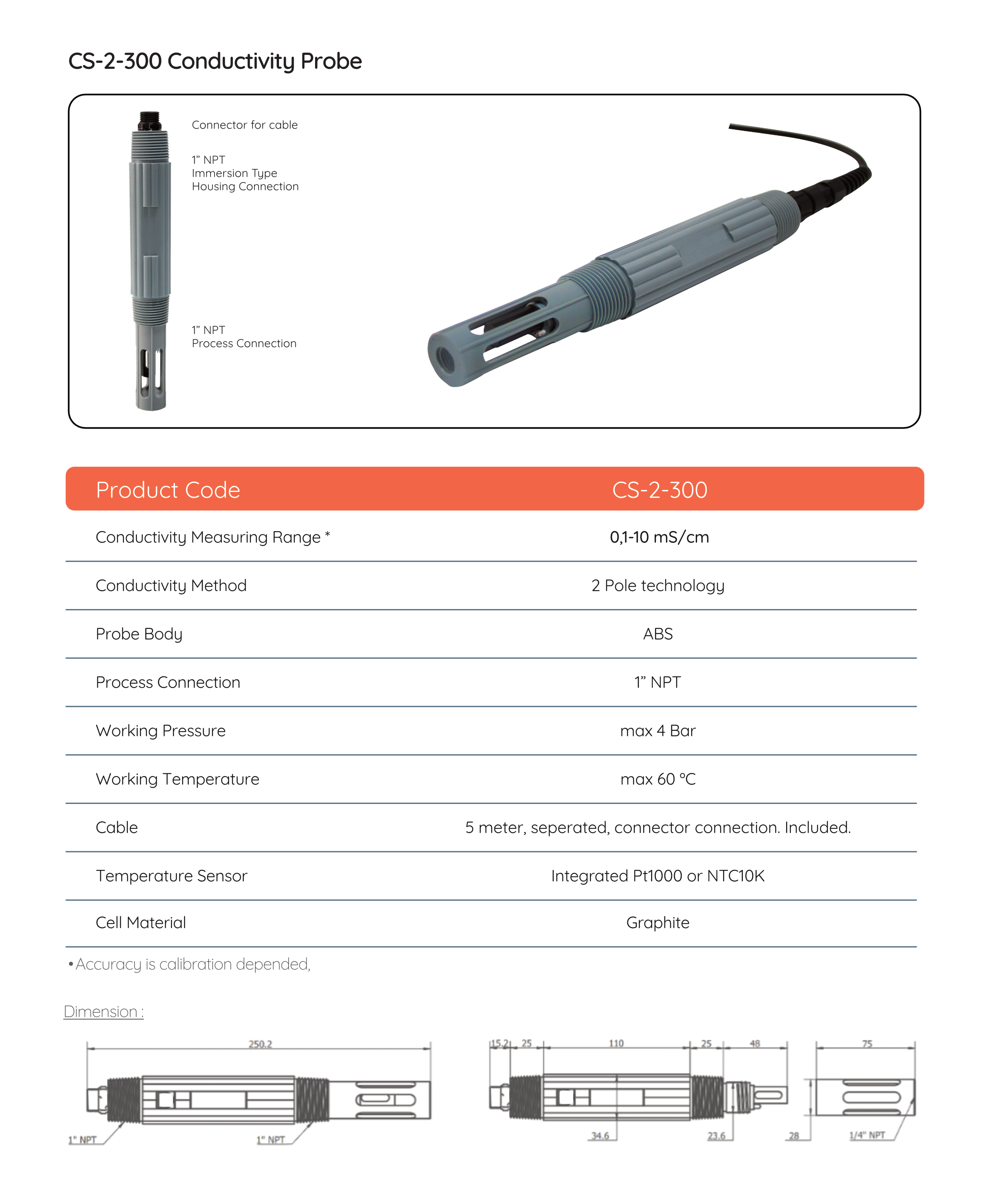

CS-2-300 0,1...10 mS/cm
