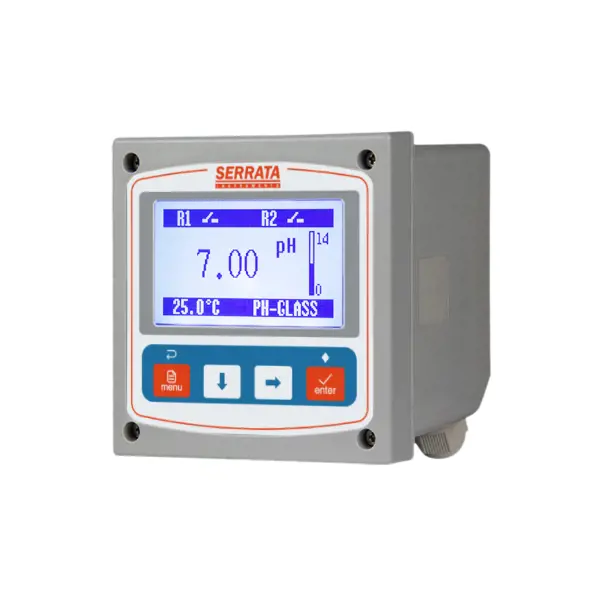

pHx250 pH Transmitter
Main Features
- IP66 Panel Mount Design
- Wall Mount availability, by an accessory
- pH or ORP probe entry
- Pt1000 or NTC Temperature sensor entry
- Automatic Temperature Compensation
- 4-20 mA, Relays, Rs485 Modbus
- Control function
- Robust design
| pHx250-G2-A | |
|---|---|
| pH/ORP Measuring Range | 0-14 pH / -2000...+2000 mV (as probe dependend) |
| Calibration Points | 3 points for pH, 1 point for ORP |
| Inputs | pH/ORP Electrode and Temperature sensor (PT1000 or NTC 10K) |
| Analog Outputs | 2 x 4-20 mA (one is for pH/ORP and other is for Temperature) |
| Relay Outputs | 2 x Relays (NO) |
| Communication | Rs485 Modbus |
| Mounting Options |
Standard is Panel for Wall mount, additional part, it is optional |
| IP Class | IP66 |
| Dimension |
Front panel 100x100 mm, H: 120 mm for panel cut details, check User Manual |
| Display | 3,2" LCD Screen, Monocolor, with backlit |
| Power Supply | 100-240 Vac |
| Functions | Automatic Temperature Compensation |
Content is preparing
| Order Code | Details |
|---|---|
| pHx250-G2-A | Online pH Transmitter 2 x 4-20 mA analog outputs 2 x Relays Rs485 Modbus 100-240Vac |
| WMPx250 | Wall Mount Accessory |
